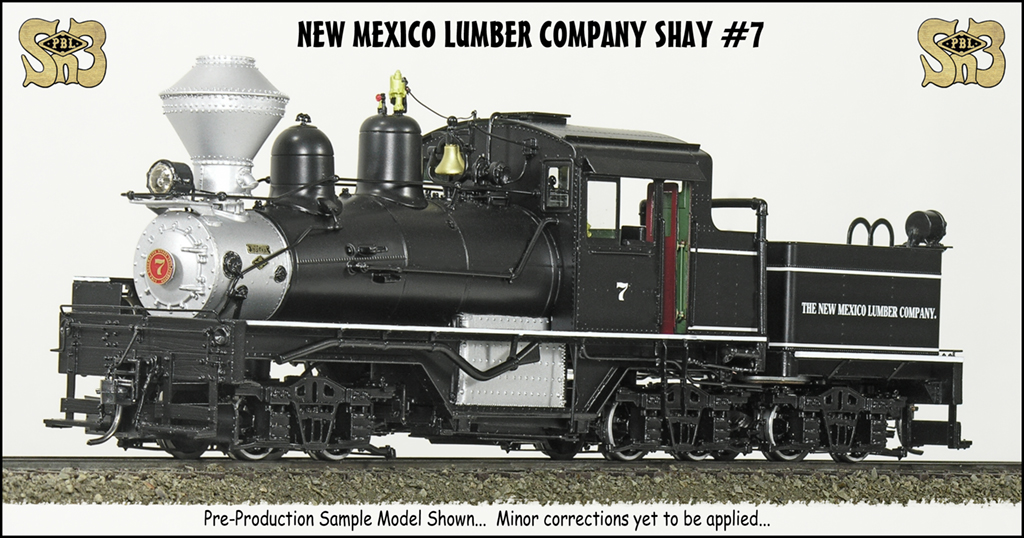

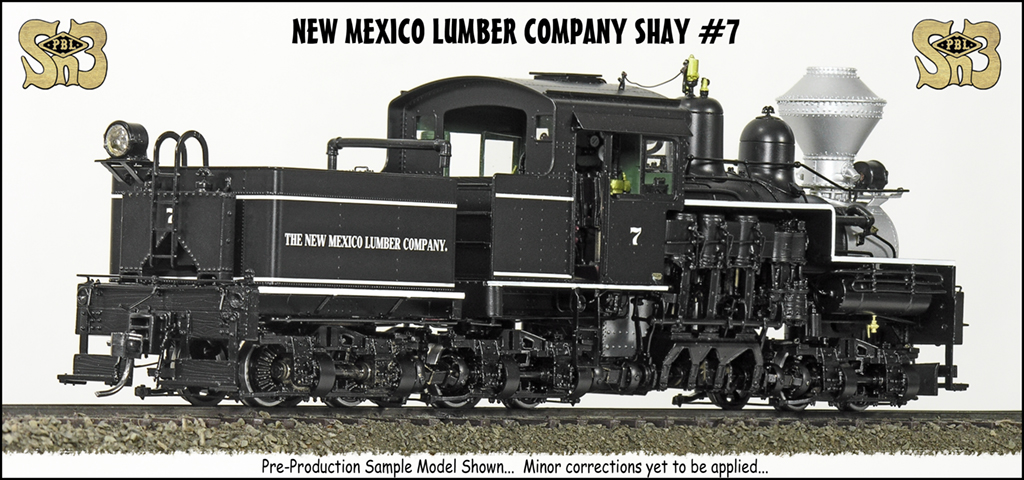

New Mexico Lumber Company's Shay #7

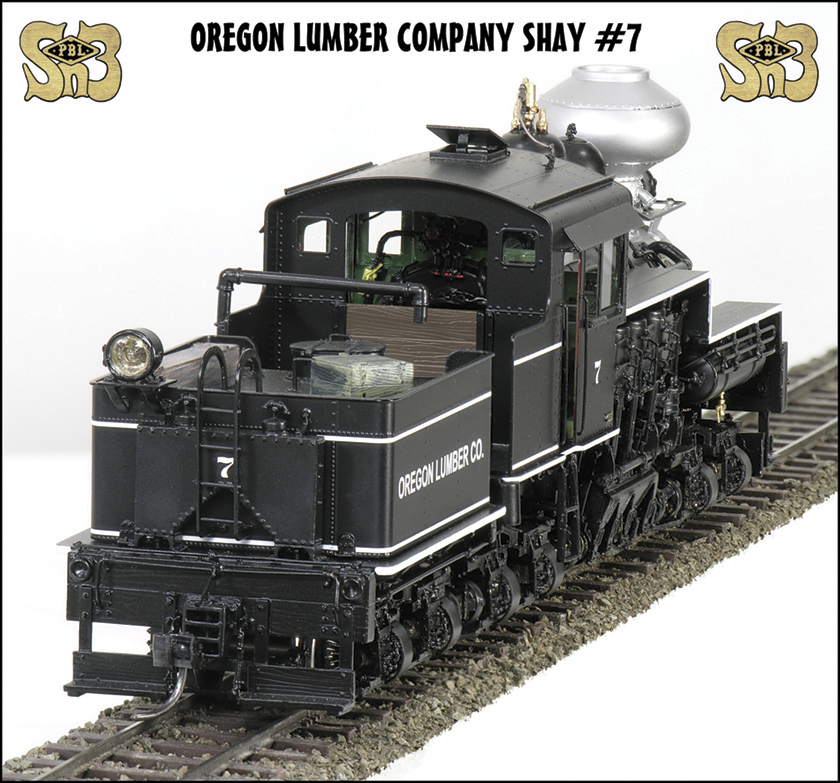

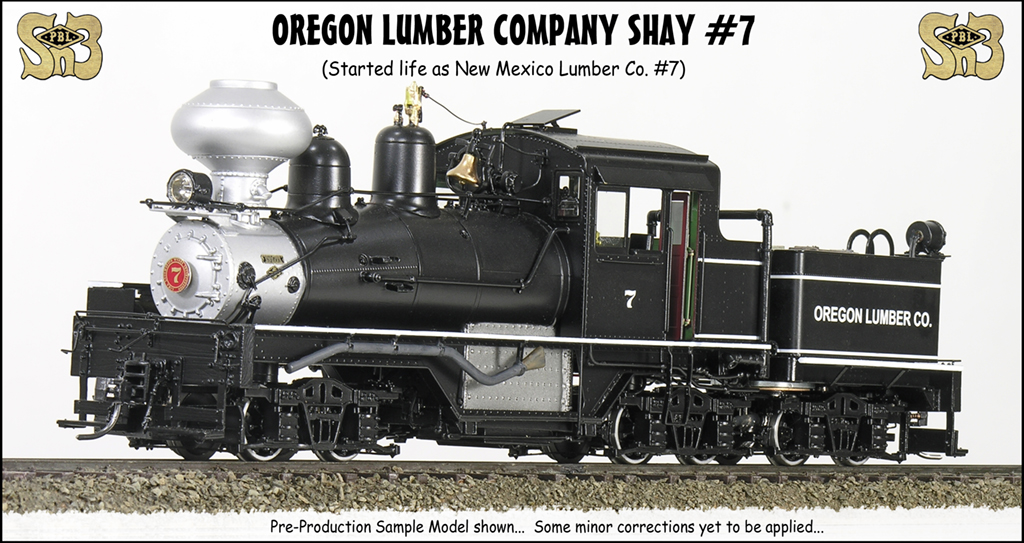

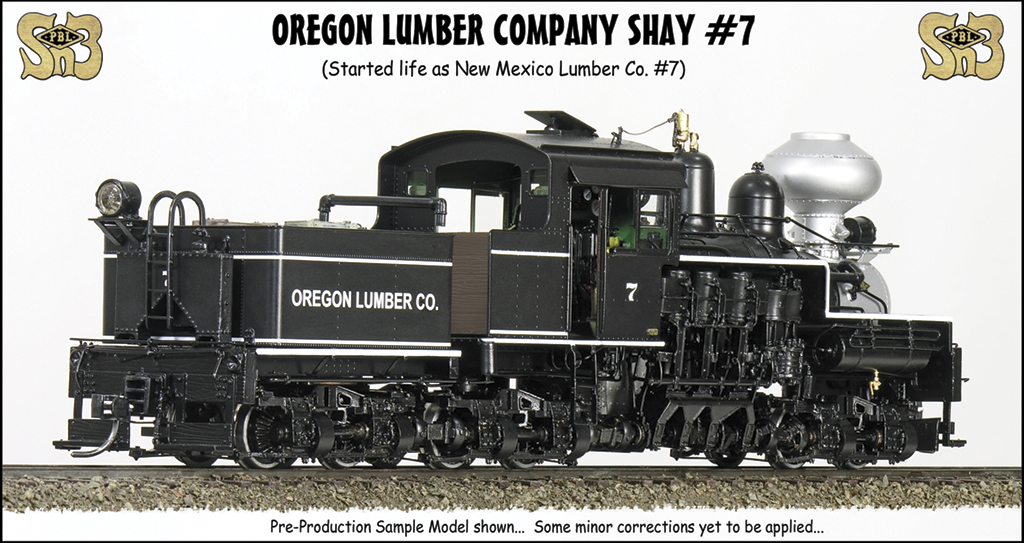

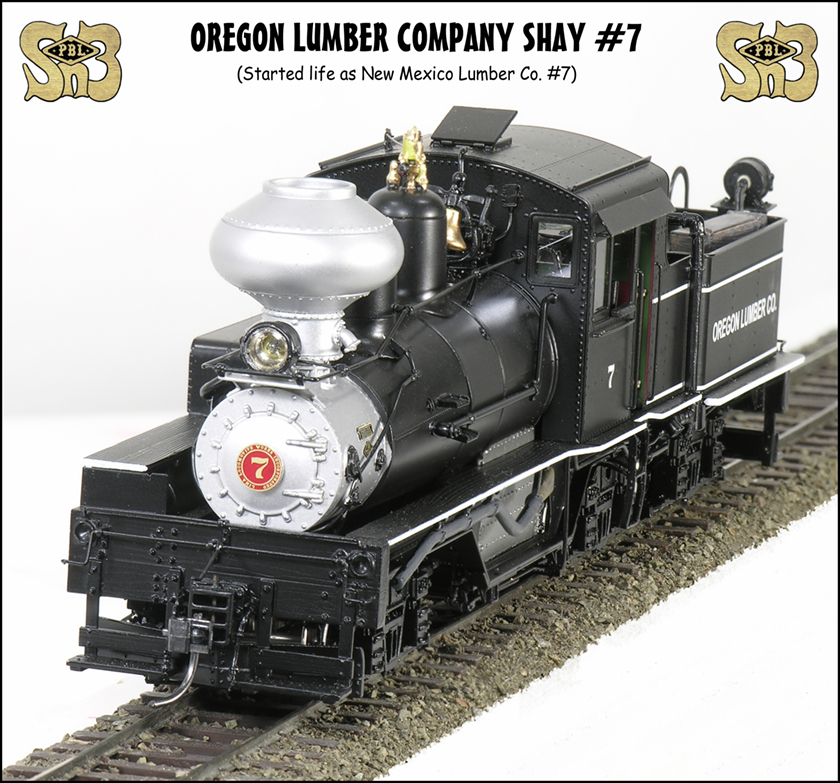

Oregon Lumber Company's Shay #7

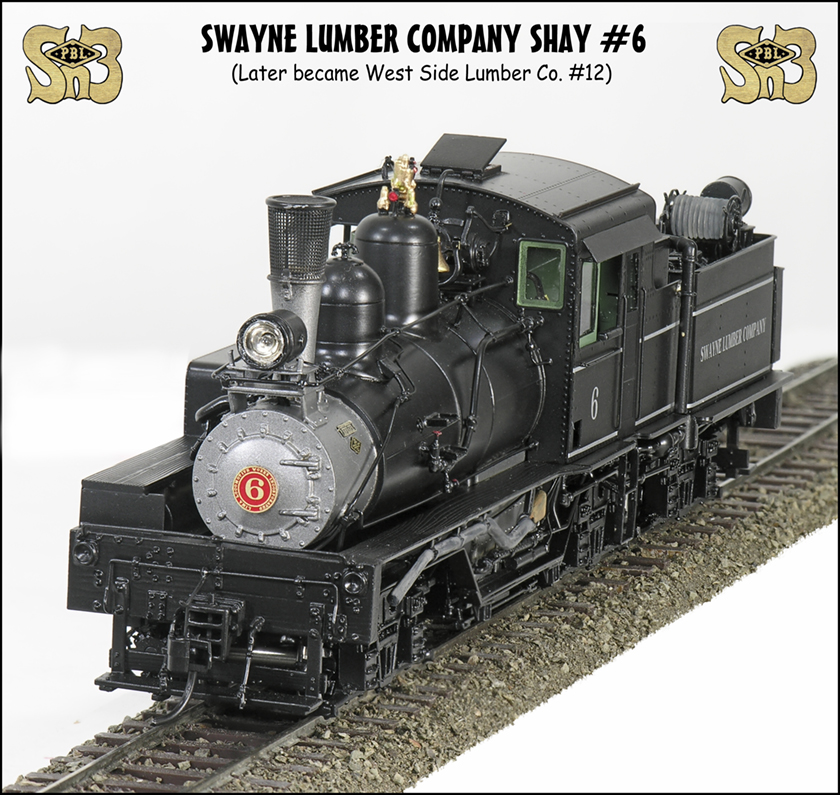

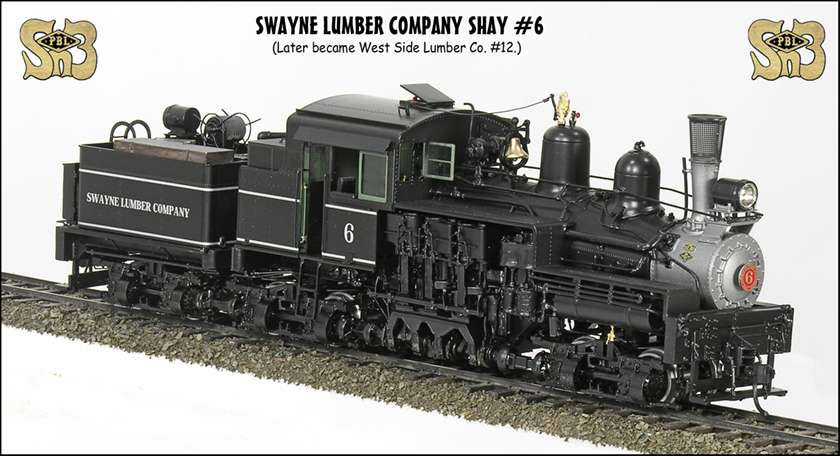

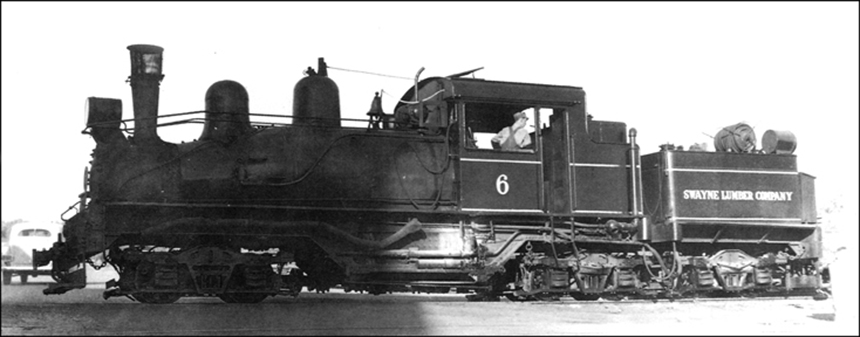

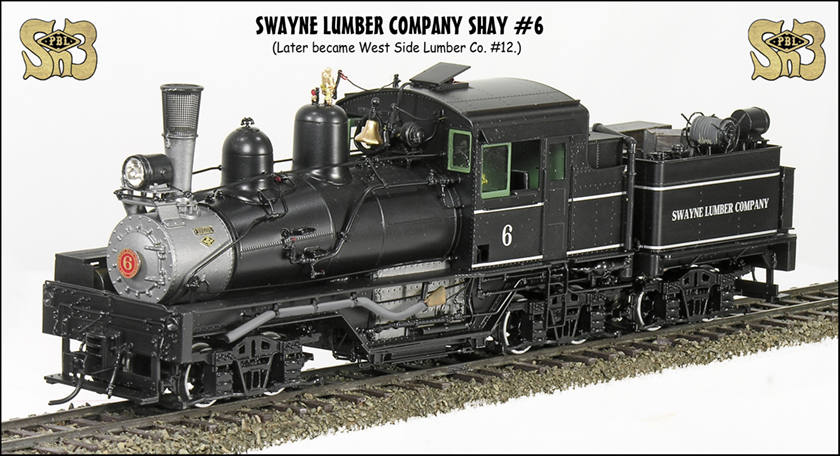

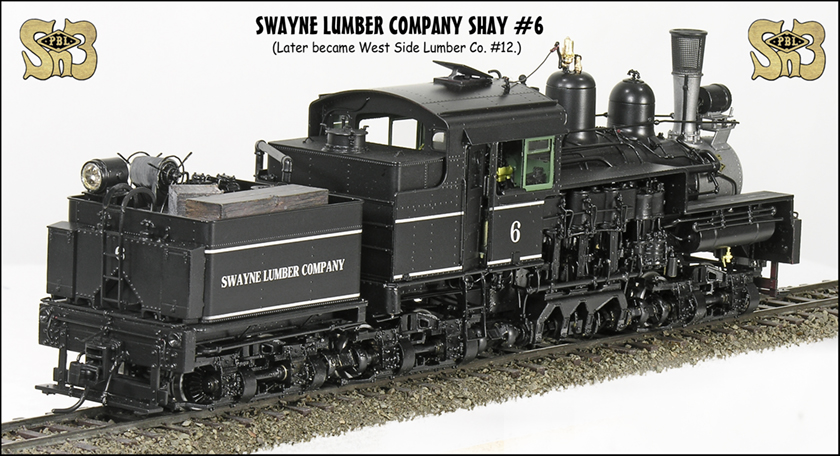

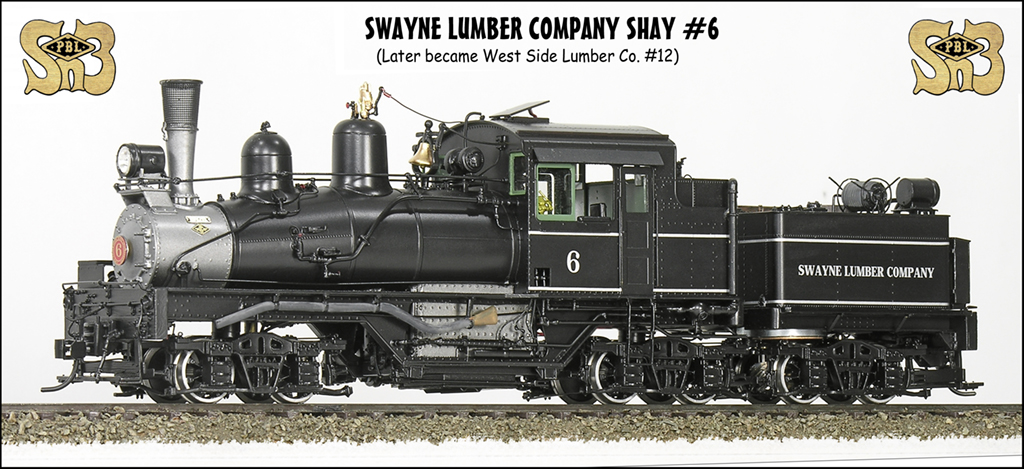

Swayne Lumber Company's Shay #6
|

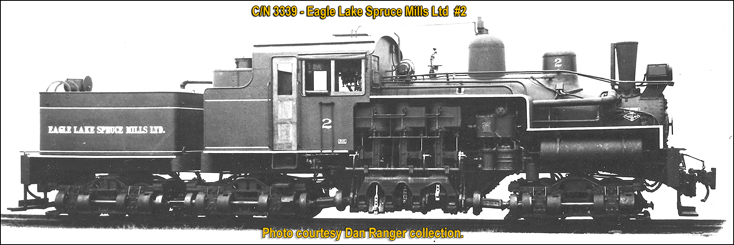

Eagle Lake Spruce Mills #2. ("S" Std.)

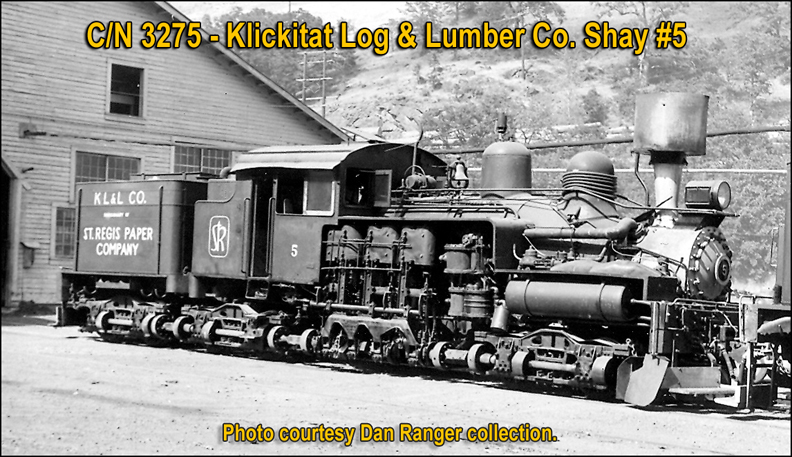

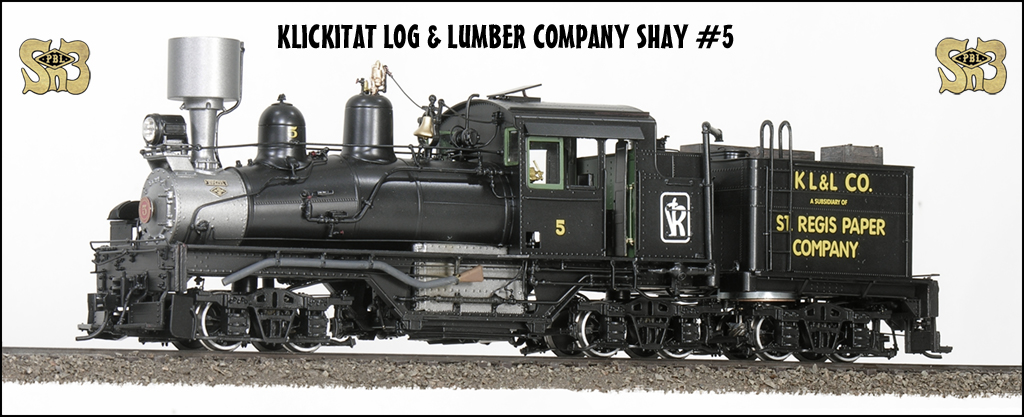

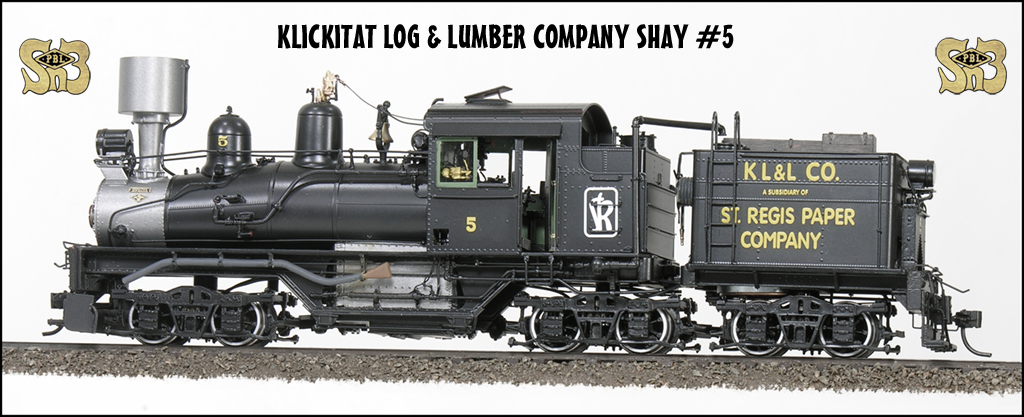

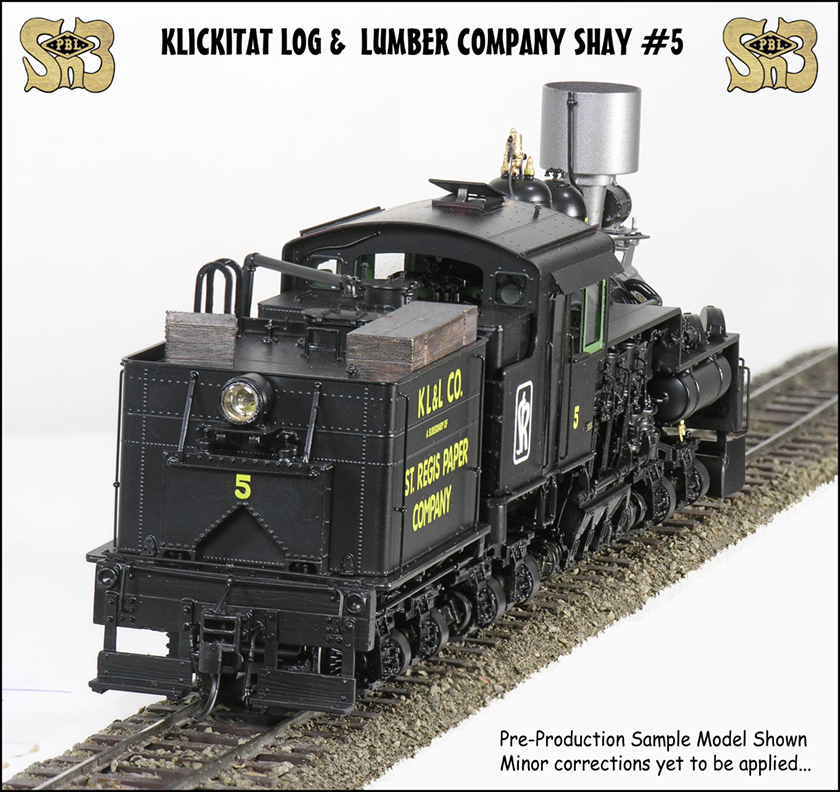

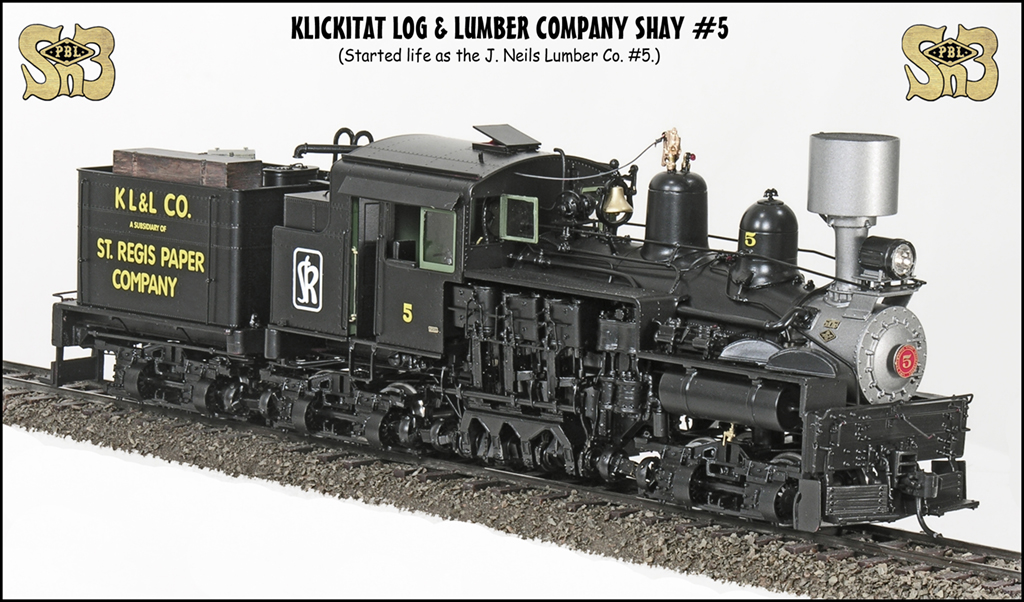

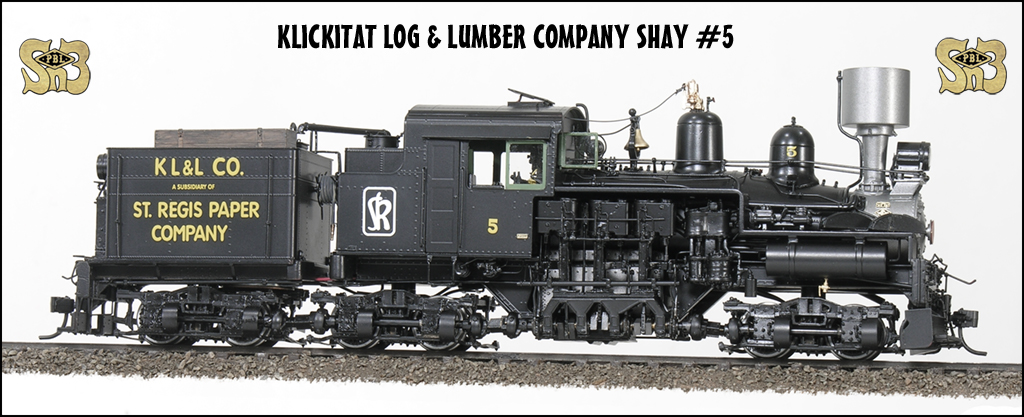

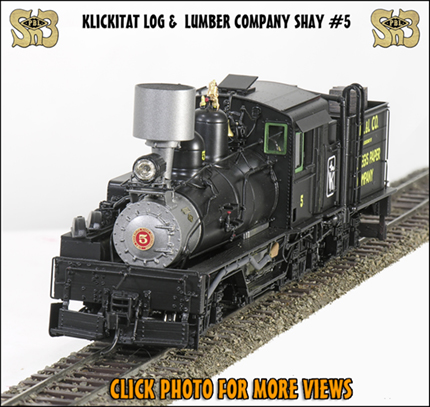

Klickatat Log & Lumber Co. Shay #5 ("S")

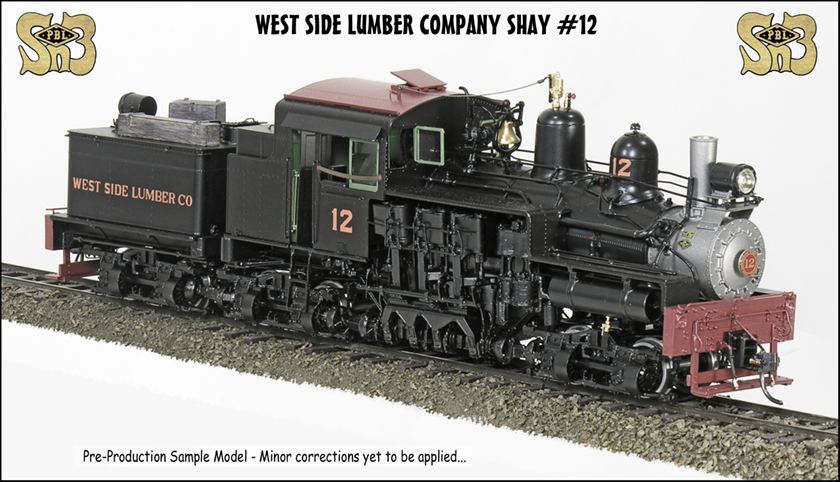

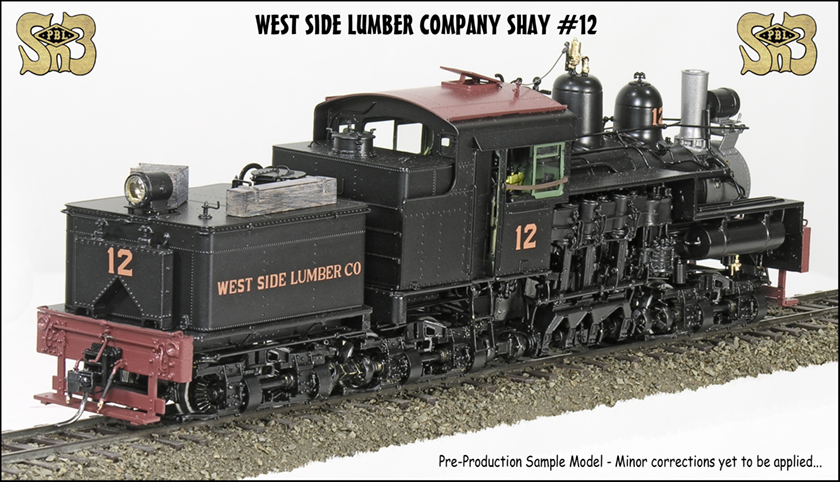

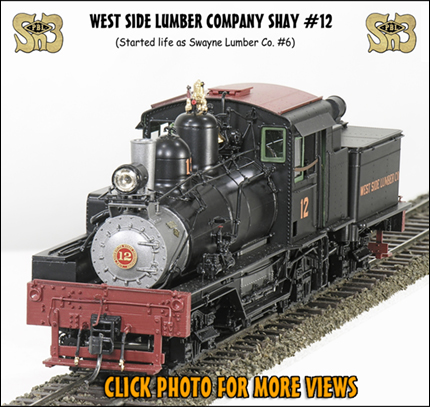

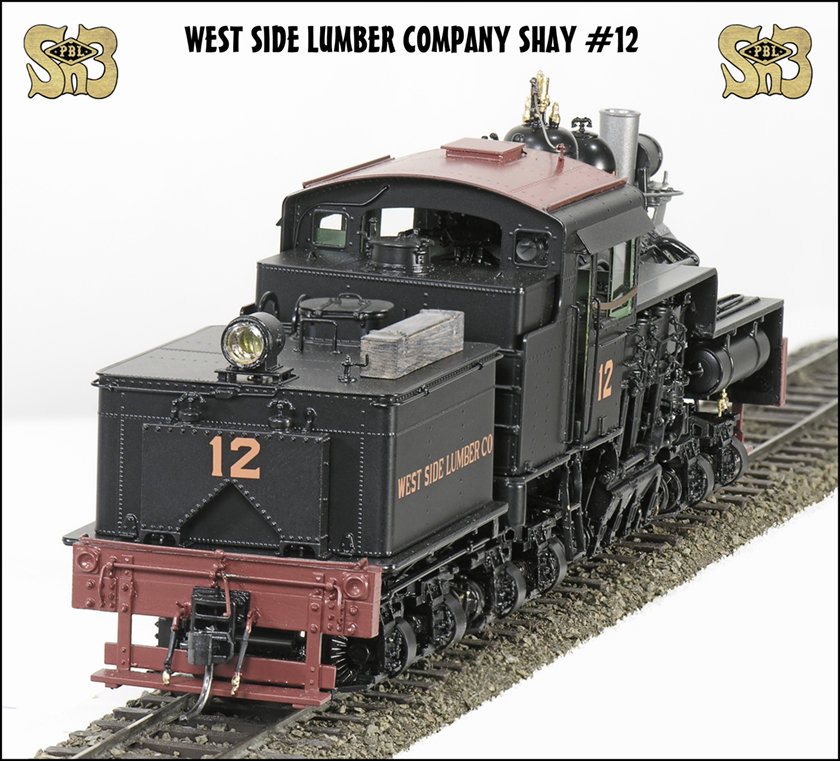

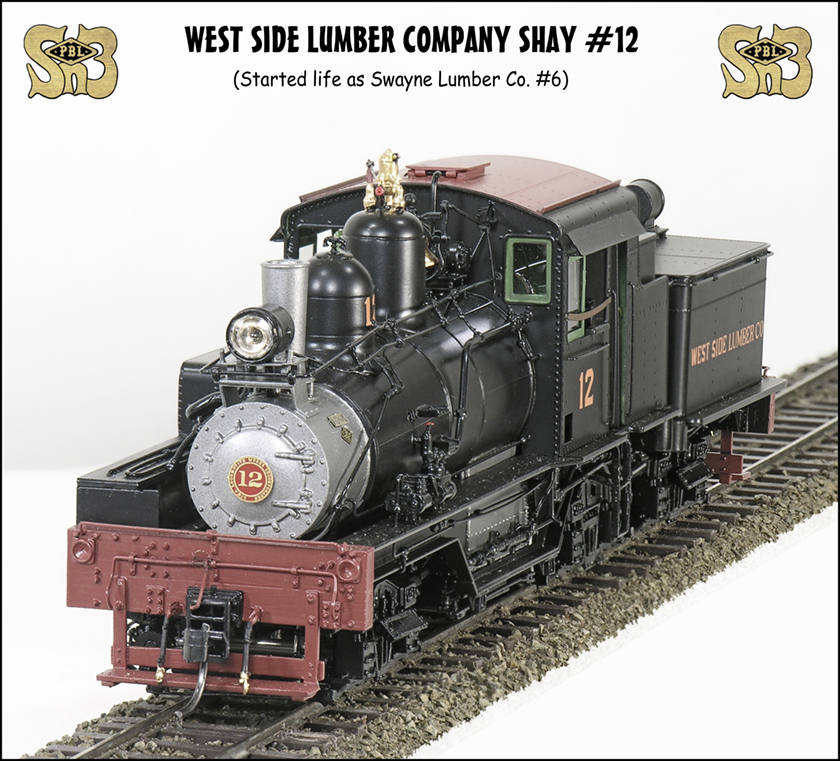

West Side Lumber Company Shay #12.
|
| If you just couldn't wait for the page to load completely and your slideshow nets you a photo on a white background, the first thing to do is CLICK HERE to perform a "HARD REFRESH". AND WAIT UNTIL THE PAGE LOADS COMPLETELY THIS TIME! If that doesn't work, CLICK HERE and try this "fix"... |
PLUS THE FOLLOWING
STANDARD GAUGE
CLASS 60-3 SHAYS !

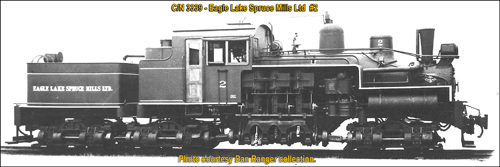

CLICK ON THE PHOTO FOR A COMMENTARY ON EAGLE LAKE SPRUCE MILLS NUMBER TWO SPOT. |
|
|
|
The prototypes for these three truckers were of modest size. Considered by
LIMA as being 60 tonners, ( Class 60-3 ), eight locomotives were built off the
same 'catalog' or 'erecting card' number: 428-C-5055. Three of these were
constructed to operate on 3'-0" gauge track. Of these three, Swayne #6 was
delivered in 1926 at a cost of $21,735.00. The New Mexico Lumber's Shay #7 was
the last narrow gauge Shay that Lima built, being delivered in November of
1929, at a cost of $23,025.00 FOB Lima. As noted in the photo captions, this
turned out to be beyond the NMLco's means so the shay was repossessed and sent
to Seattle.
The other five were built for operation on standard gauge trackage. Our "Eagle Lakes Spruce Mills #2 and Klickatat Log and Lumber #5 will be examples of this. And of course, they can be ordered for Narrow Gauge operation too, just as they could from the LIMA Locomotive Works at the outset ! Click on any of the photos above to view a "Slide Show" of that locomotive / version. There is a descriptive caption beneath photo, and you can pause or exit the slideshow any time you choose. |
|
Some Operating Features of these Three Truck Shays:
12 Wheel Electrical pickup!
All Wheel Drive just like the prototype!
Swiss Made Faulhaber MicroMo Motor with Integral Gearing!
Real 2.2:1 "Bevel Cut" "Ring and Pinion" Geared Trucks!
Real Driveshafts and "U" joints just like the prototype!
12 "Lobe" Sound Cam on an axle! For Prototypical Sound !
Stainless Steel Driver Tires, for great traction !
"CNC" Cut Precision Gears throughout !
Factory Installed, Operating Genuine Kadee® Couplers!
All Versions available gauged for either "S" Scale or "Sn3" operation.
|
|
